Product Description:

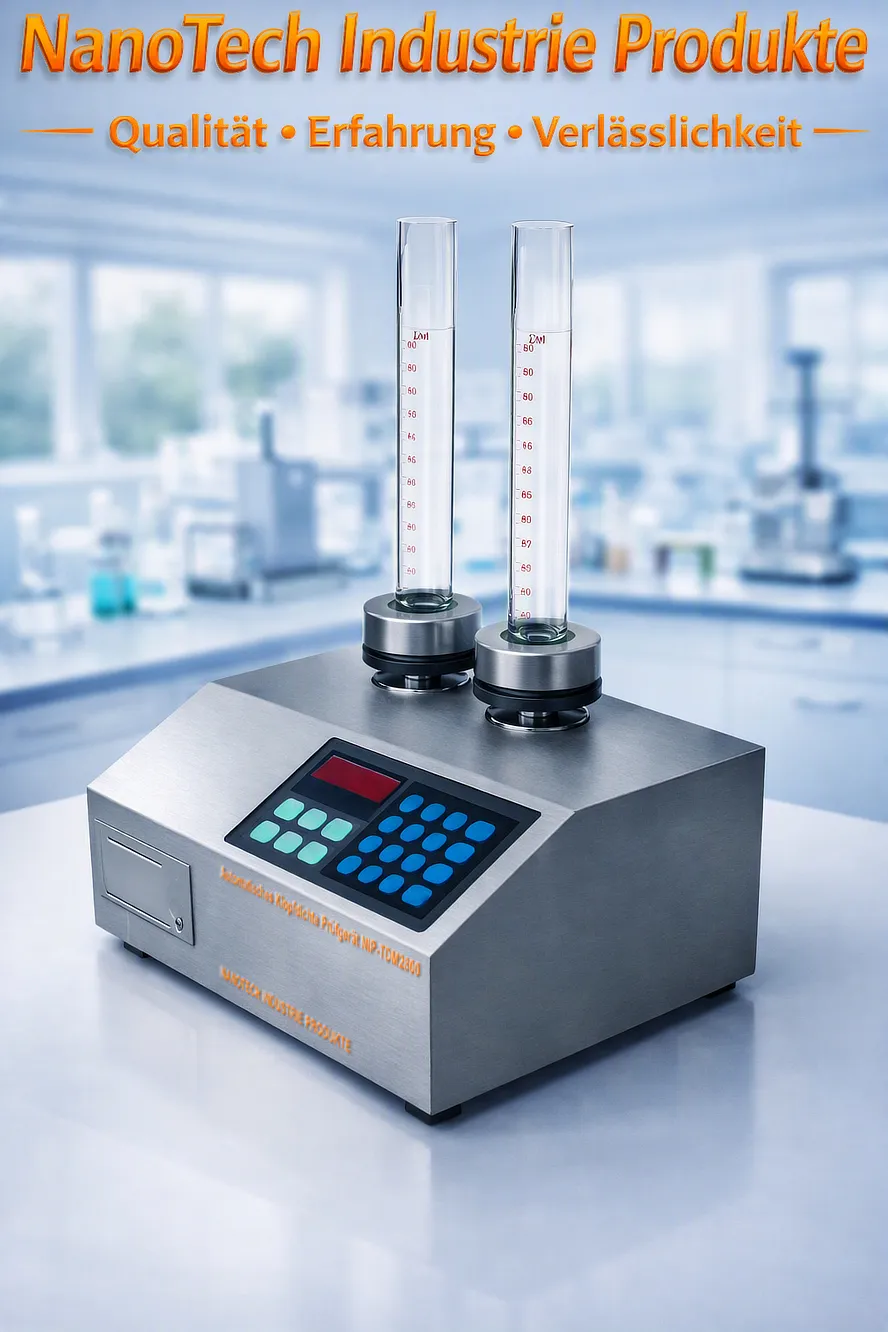

NanoTech Industrial Products Tapping Density Tester is a precise and automatic tap density apparatus to determine the Tapped density, the tamped density and the Stamp Volume of powder samples including pigments and fillers at the push of a button.

The Vibration density is the density of a powdery solid obtained by the process of tapping or shaking by means of a Tap density tester has already been compacted. The Tapping Density Tester is an electrical apparatus that automatically [operates/functions] according to preset parameters the tamped density of a powdered solid. The tap density tester consists of a base containing the electronic and mechanical components of the  tapped density apparatus contains, on this basis of tamped density of the test device Measuring cylinder installed, which are made of high-quality laboratory glass and feature a precision-manufactured measuring scale. The Apparent density apparatus is available with one measuring cylinder, two measuring cylinders and three measuring cylinders, these versions are also referred to as so-called stations and are designated accordingly as one station, two stations and three stations. The sample powder is weighed during the measuring process as part of the sample measurement in order to determine the weight precisely. The volume of the sample powder located in the measuring cylinder is the Bulk volume. The tap density apparatus now performs an automatic tapping motion out, which the sample powder in the Tapped density measuring cylinders automatically tamps according to the preset parameters. This process of tamping of the powder is carried out automatically and automatically after reaching the preset Repeated taps completed. During this process, the Bulk volume on the so-called tapped density. Now the tamped density using the formula mass of the sample powder divided by the tapped density, be calculated. The measurement result of the tamped density is converted to g/mL specified. Measurement results can also be printed out at the push of a button using the often integrated mini-printer.

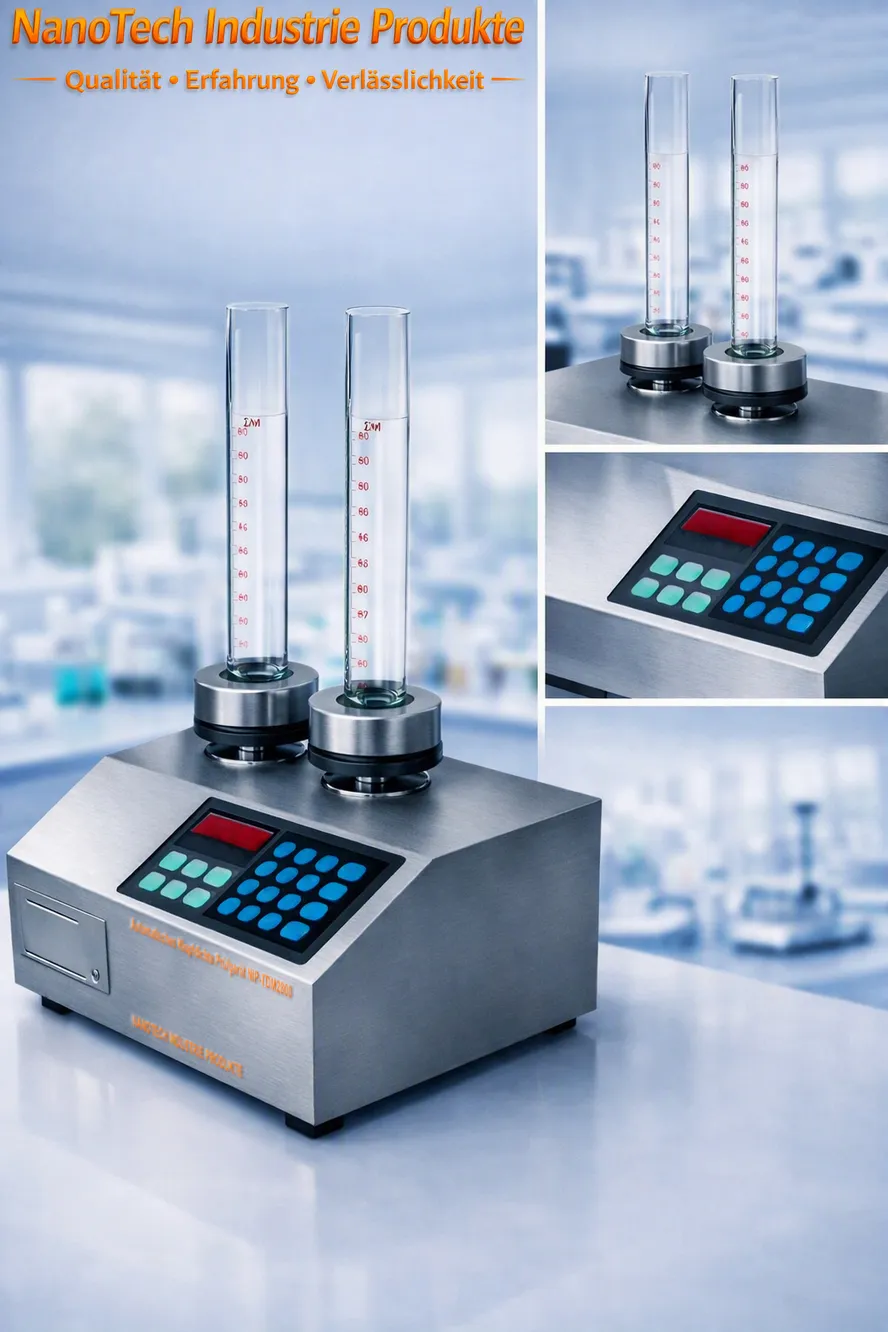

This professional Tapped density tester with columns offers the latest technology combined with a large digital display and comfortable soft-touch buttons, automatic pre-set test programs with up to three stations and three measuring cylinders, high-quality laboratory glass measuring cylinders, user-friendly tapped density determination, intuitive menu navigation, user-friendly tap amplitude adjustment, slightly rotating measuring cylinders to increase reading accuracy, integrated mini printer, high measuring accuracy and high precision, reliable quality, ergonomic design and much more.

This professional tapped density volumeter testing device is manufactured in accordance with international technical guidelines and recognized testing standards, including:

• ISO 787 (General methods of test for pigments and extenders — Part 1: Comparison of colour of pigments (ISO 787-1:1982); German version EN ISO 787-1:2017)
• ISO 3953 Metallic powders - Determination of tap density (ISO 3953:2011); German version EN ISO 3953:2011
• ISO 8460 (Instant coffee - Determination of bulk density and packed bulk density)
• ISO 8967 (Milk powder and dried milk products - Determination of bulk density)
• ISO 9161 (Uranium dioxide powder - Determination of apparent density and tap density (ISO 9161:2019)
• ASTM B527 (Standard Test Method for Tap Density of Metal Powders and Compounds)
• ASTM D4164 (Standard Test Method for Mechanically Tapped Packing Density of Formed Catalyst and Catalyst Carriers)
• ASTM D4781 (Standard Test Method for Mechanically Tapped Packing Density of Fine Catalyst Particles and Catalyst Carrier Particles)
• USP 616 (Bulk Density and Tapped Density of Powders)
• European Pharmacopoeia EP Chapter 2.9.15 Apparent Volume
