Product description:

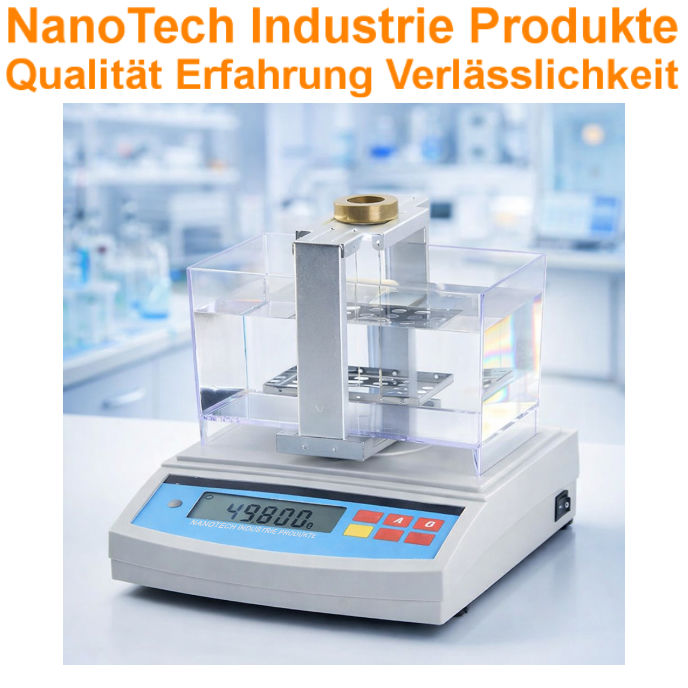

NanoTech industry products Hydrostatic scale is precise and automatic Archimedes Libra for electronic determination of the relative density of solids based on that Archimedes principle on Click.

This professional Archimedes density measuring scales is a Laboratory density measuring device for measuring the volume and relative density of solids including granules, grains, foams, regularly shaped specimens, irregularly shaped specimens, porous specimens, monolithic specimens with cavities and much more.

This professional Archimedes Hydrostatic Balance offers the latest chip technology combined with a large LCD display and comfortable push buttons, optionally with a large color touchscreen display, automatic calibration, high measuring accuracy and high precision, user-friendly density measurement, user-friendly sample handling, intuitive menu navigation, automatic density calculation, precision-made standard water reservoir, suitable for almost everyone Sample sizes made to measure based on customer requirements, optional PC connection and PC software, reliable quality, ergonomic design and much more.

This precision Density measuring scale determines that relativ density of samples based on Archimedes' principle and calculates them relativ density of samples automatically. The relativ density is shown clearly on the large LCD display and using the optional PC software, measurement data can be transferred to a PC or a laboratory network for further data analysis and the preparation of measurement reports. This electronic one Hydrostatic scale is particularly user-friendly and for professionals Density measurement suitable for research and quality management.

This professional Archimedes Density Libra is suitable for measuring the relative density from a variety of samples including ceramics, catalysts, filter materials, fillers, fuels, fuels, oils, chemicals, minerals, cosmetics, cement, desiccants, resins, silicone gel, rubber, foams and much more.

In addition to the included standard water reservoir, there are Custom-made density measuring scales according to customer requirements available for measuring samples with larger dimensions.

This professional Electronic Hydrostatic Scale is manufactured in accordance with international technical guidelines and recognized testing standards including:

Electronic Hydrostatic Scale – Applications:

The Hydrostatic scale is precise and automatic Archimedes Libra for electronic determination of the relative density of solids based on that Archimedes principle on Click.

This professional Archimedes density measuring scales is a Laboratory density measuring device for measuring the volume and relative density of solids and liquids including granules, grains, foams, regularly shaped specimens, irregularly shaped specimens, porous specimens, monolithic specimens with cavities and much more.

This precision Density measuring scale determines that relativ density of samples based on Archimedes' principle and calculates them relativ density of samples automatically. The relativ density is shown clearly on the large LCD display and using the optional PC software, measurement data can be transferred to a PC or a laboratory network for further data analysis and the preparation of measurement reports. This electronic one Hydrostatic scale is particularly user-friendly and for professionals Density measurement suitable for research and quality management.

This professional Archimedes Density Libra is suitable for measuring the relative density from a variety of samples including ceramics, catalysts, filter materials, fillers, fuels, fuels, oils, chemicals, minerals, cosmetics, cement, desiccants, resins, silicone gel, rubber, foams and much more.

In addition to the included standard water reservoir, there are Custom-made density measuring scales according to customer requirements available for measuring samples with larger dimensions.

Archimedes density measuring scale – special features:

  • Latest technology
  • Large digital display
  • Optionally large color touchscreen display
  • Comfortable soft-touch press buttons
  • Professional measurement of relative density
  • Automatic presettable test programs
  • User-friendly density determination
  • Intuitive menu navigation
  • User-friendly sample handling
  • Automatic calibration
  • High measurement accuracy & high precision
  • Reliable quality
  • Ergonomic design
  • Manufactured in accordance with international technical guidelines and recognized testing standards including ISO 1183 ISO 2781, ASTM D297, ASTM D792

Archimedes Density Tester – Specifications:

ModelNIP-BDM1800NIP-BDM2800NIP-BDM3800NIP-BDM4800
Measurement methodArchimedes hydrostatic density measurement
Measuring range0.001 - 99,999 g/cm³0.001 - 99,999 g/cm³0.001 - 99,999 g/cm³0.001 - 99,999 g/cm³
Measuring accuracy density0.001 g/cm³0.001 g/cm³0.001 g/cm³0.001 g/cm³
Maximum sample weight300g600g900g1200g
Measuring accuracy fine scale0.005g0.005g0.01g0.01g
Samples measurement resultsrelativ density
volume
Percentage
relativ density
volume
Percentage
relativ density
volume
Percentage
relativ density
volume
Percentage
High Accuracy & High PrecisionYesYesYesYes
User-friendly density measurementYesYesYesYes
User-friendly sample handlingYesYesYesYes
Automatic calibrationYesYesYesYes
Large LCD displayYesYesYesYes
Comfortable soft-touch snap fastenersYesYesYesYes
Reliable qualityYesYesYesYes
Ergonomic designYesYesYesYes
Operating voltage100VAC - 240VAC 50Hz/60Hz100VAC - 240VAC 50Hz/60Hz100VAC - 240VAC 50Hz/60Hz100VAC - 240VAC 50Hz/60Hz
In accordance with internationally recognized guidelines ISO 1183 ISO 2781, ASTM D297, ASTM D792

ModelNIP-BDM5800NIP-BDM6800NIP-BDM7800NIP-BDM8800
Measurement methodArchimedes hydrostatic density measurement
Measuring range0.001 - 99,999 g/cm³0.001 - 99,999 g/cm³0.0001 - 99.9999 g/cm³0.0001 - 99.9999 g/cm³
Measuring accuracy density0.001 g/cm³0.001 g/cm³0.0001 g/cm³0.0001 g/cm³
Maximum sample weight2000g3000g120g200 g
Measuring accuracy fine scale0.01g0.01g0.001g0.001g
Samples measurement resultsrelativ density
volume
Percentage
relativ density
volume
Percentage
relativ density
volume
Percentage
relativ density
volume
Percentage
High Accuracy & High PrecisionYesYesYesYes
User-friendly density measurementYesYesYesYes
User-friendly sample handlingYesYesYesYes
Automatic calibrationYesYesYesYes
Large LCD displayYesYesYesYes
Comfortable soft-touch snap fastenersYesYesYesYes
Reliable qualityYesYesYesYes
Ergonomic designYesYesYesYes
Operating voltage100VAC - 240VAC 50Hz/60HzJ100VAC - 240VAC 50Hz/60Hz100VAC - 240VAC 50Hz/60Hz100VAC - 240VAC 50Hz/60Hz
In accordance with internationally recognized guidelines ISO 1183 ISO 2781, ASTM D297, ASTM D792

ModelNIP-BDM5800CSNIP-BDM6800CSNIP-BDM7800CSNIP-BDM8800CS
Measurement methodArchimedes hydrostatic density measurement
Measuring range0.001 - 99,999 g/cm³0.001 - 99,999 g/cm³0.0001 - 99.9999 g/cm³0.0001 - 99.9999 g/cm³
Measuring accuracy density0.001 g/cm³0.001 g/cm³0.001 g/cm³0.001 g/cm³
Maximum sample weight2000g3000g6000g8000g
Measuring accuracy fine scale0.1g0.1g0.1g0.1g
Samples measurement resultsrelativ density
volume
Percentage
relativ density
volume
Percentage
relativ density
volume
Percentage
relativ density
volume
Percentage
High Accuracy & High PrecisionYesYesYesYes
User-friendly density measurementYesYesYesYes
User-friendly sample handlingYesYesYesYes
Automatic calibrationYesYesYesYes
Large LCD displayYesYesYesYes
Large color touchscreen displayOptionalOptionalOptionalOptional
Comfortable soft-touch snap fastenersYesYesYesYes
Reliable qualityYesYesYesYes
Custom madeYesYesYesYes
Ergonomic designYesYesYesYes
Custom madeYesYesYesYes
Operating voltage100VAC - 240VAC 50Hz/60Hz100VAC - 240VAC 50Hz/60Hz100VAC - 240VAC 50Hz/60Hz100VAC - 240VAC 50Hz/60Hz
In accordance with internationally recognized guidelines ISO 1183 ISO 2781, ASTM D297, ASTM D792

Archimedes density meter – scope of delivery:

  • Automatic Archimedes density meter
  • Rich accessories
  • Carefully and professionally calibrated
  • Calibration certificate
  • Quality certificate
  • operation manual
  • Standard warranty
  • Optional extended technical customer service
  • Optional extended warranty
