Product Description:

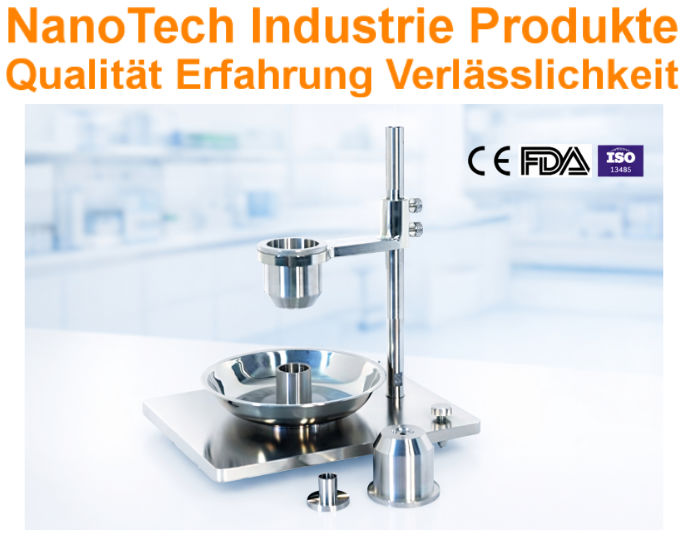

Nanotech Industrie Produkte Carney Flow Meter with Carney funnel and with Hall funnel is a precise Density Meter to determine the Hall flow rate and the Carney flow rate of powders and powder-like samples.
This professional Carney apparatus to determine the Flow rate of powders combines an ergonomic design with a sturdy, high-quality stainless steel construction, paired with a precision-machined Carney funnel with a discharge opening diameter of 2.5mm (0.1″), a precision-manufactured Hall funnel with a discharge opening diameter of 5 mm (0.2″), a Density Cup of 25ml, a digital precision stopwatch, and a rich set of accessories including a powder overflow collection container and much more.
A digital precision scale suitable for laboratory use is available as an optional accessory.
To ensure high precision, the Carney funnel and the Hall funnel as well as the 25ml density cup each machined from a larger piece of stainless steel or brass.
The Carney funnel, the Hall funnel and the Density Cup are optionally available in both stainless steel and brass to best suit your testing requirements.

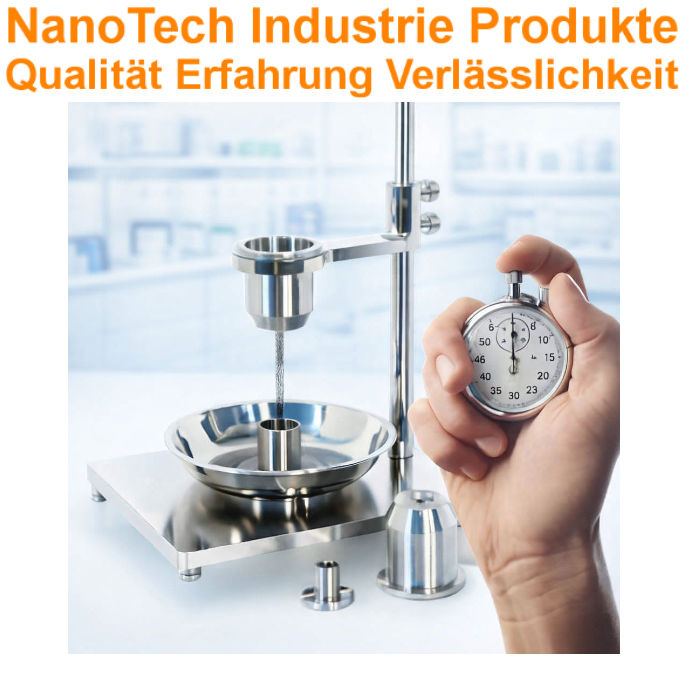

The Carney flow meter test method is carried out in accordance with the test standard ASTM B417 and serves to measure the flow time of 50 g of powder flowing through a discharge opening with a specific diameter.
This precision-machined Carney apparatus for measuring the flow rate is suitable for determining the flow time, flow behavior, and density of a wide variety of powders and similar samples, including metal powders, ceramic powders, pharmaceutical powders, and much more.
This professional Carney funnel test setup is manufactured in accordance with international technical guidelines, including:
- DIN EN ISO 3923 (Metallic powders – Determination of apparent density – Part 1: Funnel method (ISO/DIS 3923-1:2017)
- DIN EN ISO 4490 (Metallic powders – Determination of flow rate using a calibrated funnel (Hall flowmeter))
- DIN EN ISO 14629 (Fine ceramics (advanced ceramics, advanced technical ceramics) - Determination of flowability of ceramic powders (ISO 14629:2012); German version EN ISO 14629:2016)
- ASTM B212 (Standard Test Method for Apparent Density of Free-Flowing Metal Powders Using the Hall Flowmeter Funnel)
- ASTM B213 (Standard Test Method for Flow Rate of Metal Powders Using the Hall Flowmeter Funnel)
- ASTM B417 (Standard Test Method for Apparent Density of Non-Free-Flowing Metal Powders Using the Carney Funnel)
Carney Flowmeter Test Setup – Applications:
- Carney Flowmeter Flow Measurement
- Hall flow meter flow measurement
- Measurement of apparent density using a Carney funnel
- Measurement of apparent density using a Hall flowmeter funnel
- The measurement of apparent density complementing the Carney funnel is performed using a Scott volumeter and tap density testers including ISO R60.
- And much more
Carney Flowmeter – Features:
- Carney Flowmeter Kit made from high-quality materials
- Carney funnel with a discharge opening of 5 mm (0.2″)
- Hall flow meter funnel with a 2.5 mm (0.1″) discharge orifice
- Density cup with a volume of 25 ml
- Available in non-magnetic materials for measuring samples with magnetic properties
- Digital precision stopwatch included
- Digital precision scale available as an option
- Sturdy & Ergonomic Design
- Precision-manufactured measuring device
- Both the two funnels and the density cup are each machined from a single larger piece of stainless steel or brass to ensure high precision
- Height-adjustable feet
- High Precision & High Measurement Accuracy
- A wide range of test applications based on international testing guidelines and recognized testing standards
- Reliable and user-friendly handling
- Ergonomic Design & Reliable Quality
- Manufactured in accordance with international technical guidelines and recognized testing standards, including ASTM B212, ASTM B213, ASTM B417, ISO 3923, ISO 4490, and ISO 14629
Carney Flowmeter – Specifications:
| Model | NIP-CFM1800SS | NIP-CFM1800B | NIP-CFM1800CS |
|---|---|---|---|
| Funnel material | Stainless steel | Brass | Brass or stainless steel |
| Carney Funnel | 5mm (0.2") | 5mm (0.2") | Custom precision funnel |
| Hall funnel | 2.5mm (0.1") | 2.5mm (0.1") | Custom precision funnel |
| Density Cup | 25ml | 25ml | 25ml |
| Precision Scale | 0.00 g – 100.00 g (optionally available) | 0.00 g – 100.00 g (optionally available) | 0.00 g – 100.00 g (optionally available) |
| precision scale accuracy | 0.01 g or 0.001 g | 0.01 g or 0.001 g | 0.01 g or 0.001 g |
| Stopwatch accuracy | ±0.1 sec | ±0.1 sec | ±0.1 sec |
| Precision-crafted from high-quality materials | Yes | Yes | Yes |
| High Precision & High Accuracy | Yes | Yes | Yes |
| User-Friendly Operation | Yes | Yes | Yes |
| Ergonomic design & High reliability | Yes | Yes | Yes |
| Reliable construction & durability | Yes | Yes | Yes |
| Manufactured in accordance with internally recognized test standards including ASTM B212, ASTM B213, ISO 3923, ISO 4490, ISO 14629 | |||
Carney Flowmeter – Scope of delivery:
- Carney Flowmeter Kit
- Extensive Selection of Accessories
- Carefully and professionally calibrated
- Quality Certificate
- Calibration Certificate
- User Manual
- Advanced Technical Support
- Extended Warranty
Get more information about this product now. One of our experts will be happy to contact you with further helpful information.
